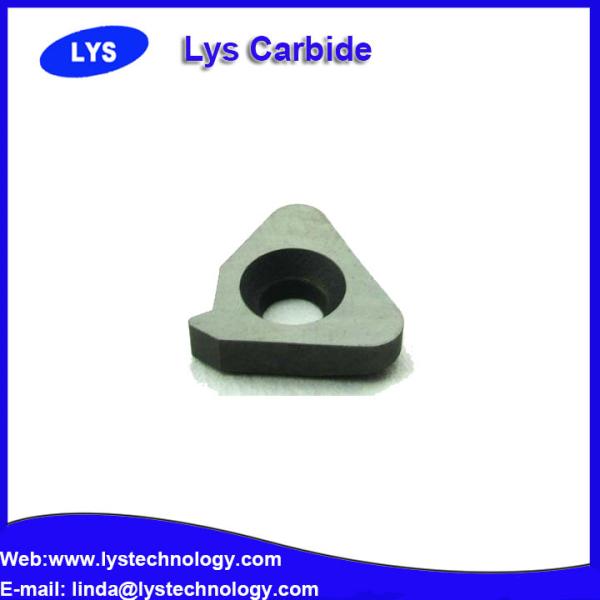

Tungsten carbide shims

Brand Name : OEM

Model Number : varisous

Certification : many

Place of Origin : Zhuzhou, Hunan, China

MOQ : 100pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per week

Delivery Time : 5-8 working days

Packaging Details : normal packing or as per your requirements

name : CNC insert holder shim/ Tungsten carbide shims:

Contact Now

Tungsten carbide shims

Grades:

YBC151	High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.
YBC152	Thick TiCN and Al2O3 coating
YBC251	tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC252	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBC351	Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.
YBG102	nc-TiAN coating and fine-grained matrix.
YBG201	PVD coating
YBG205	Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.
YBG302	nc-TiAN coating and flexible cemented carbide matrix.
YBM151	Special organizational structure and TiCN, thin Al2O3 and TiN coating.
YBM251	Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.
YBM253	With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.
YBD052	CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.
YBD102	CVD coating (thick Al2O3 & thick TiCN) , hard matrix.
YBD152	CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.
YBD252	CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.
YNG151	Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.
YNG151C	Physics weather deposit (PVD) coating, high toughness ceramal matrix.
YD101	Fine particle hardness phase WC and bond phase Co.
YD201	Middle particle hardness phase WC and bond phase Co.

Tungsten carbide shims Images
